Place of Origin:
CHINA
Brand Name:
Aldrich/OEM/ODM
Certification:
CCC, ISO9001:2000, ISO 9001, CCC
Model Number:
Italika AT110 / AT110RT
| HONDA | C100, C110, C125, SUPRA110, WAVE110, SPACY110, WAVE125, INVOVAi125, ECO DELUXE 100, CD100 Hero Splendor, WH100, WH125, PCX125, CG125, CG150, CG200, CG250, CG300, WY125, WY150, CGL125, CB110, CB125, STORM125, CB1-125, CBZ160, CB190, CBR250, CBX250, NXR125 BROSS, NXR150 BROSS, NXR200 BROSS, CTX200, CBF125, CBF150, etc. |
| YAMAHA | T50, T80, V50, JOG50, BWS50, V80, CY80, RX100, RX115, YB100, JOG100, BWS100, CRUX110, JY110, CRYPTON, T105, RS110, RX125, BWS125, DT125, DTK125, DT175, DTK175, YBR125, SRZ125, SRZ150, XTZ125, XTZ150, FAZER150, XT200, LC135, FZ16, etc. |
| SUZUKI | A80, A100, AX100, AX4, AX115, AG100, GP100, TS100Z, TS125, TS185, TS185ER, AX115, FD115, EN125, GN125, GN125H, GP125, GS125, TR125, SMASH, EN125-2A,HJ110,HJ125 |
| BAJAJ | CT100,BAJAJ BOXER BM, BAJAJ BOXER CT, BAJAJ BOXER BM150, CT100, BAJAJ DISCOVER 100, DISCOVER 125, DISCOVER 135.BM150 .PULSAR 135, PULSAR 150, PULSAR 180, PULSAR 200, PULSAR 220, |
| OTHER BRAND | KAWASAKI: Kdx125 ,Zr400,GPX600,ZZR600, ITALIKA: DS150, GS150, GTS175, XS125, DS125, WS150, WS175, FT110, FT125, FT150, AT110, XT110, DM150, RT180, RT200, HAOJUE XPRESS, HAOJUE COOL.TM100, LF110, LX110, LX125, LX150, DY125, DY150, ZS200, KEEWAY, TVS start, TVS Sport, TVS king, TVS victor, TVS apache160, TVS apache180, HERO, XY125, XY150, XY200GY-6, XY200GY-8, XY200GY, GY200, CROSS200, BROSS200, GY6-80, GY6-100, GY6-125, GY6-150, SYM125, MIO100, CBT125, CM150, TIGER150, TIGER200, QJ125, HJ125-8, HJ150. |
| Crankshaft | Camshaft | Piston Ring | Sprocket Kit | Front /Rear shock Absorber | Seat | Oil Seal | Oil pump |
| Cylinder kit | Clutch Plate | Wheel Hub/Rim | Speedometer | Fuel Tank | Chain | Muffle | Starting Motor |
| Cylinder head | Cluth cable | Brake Shoes | Headlight/Led light | Side Cover | Battery | Coil Assy | Filter |
| Carburetor | Timing Chain | Brake Pad | Lock system/set | Plastic Cover | Grip Set | Rock Arm | Brake control bottom |

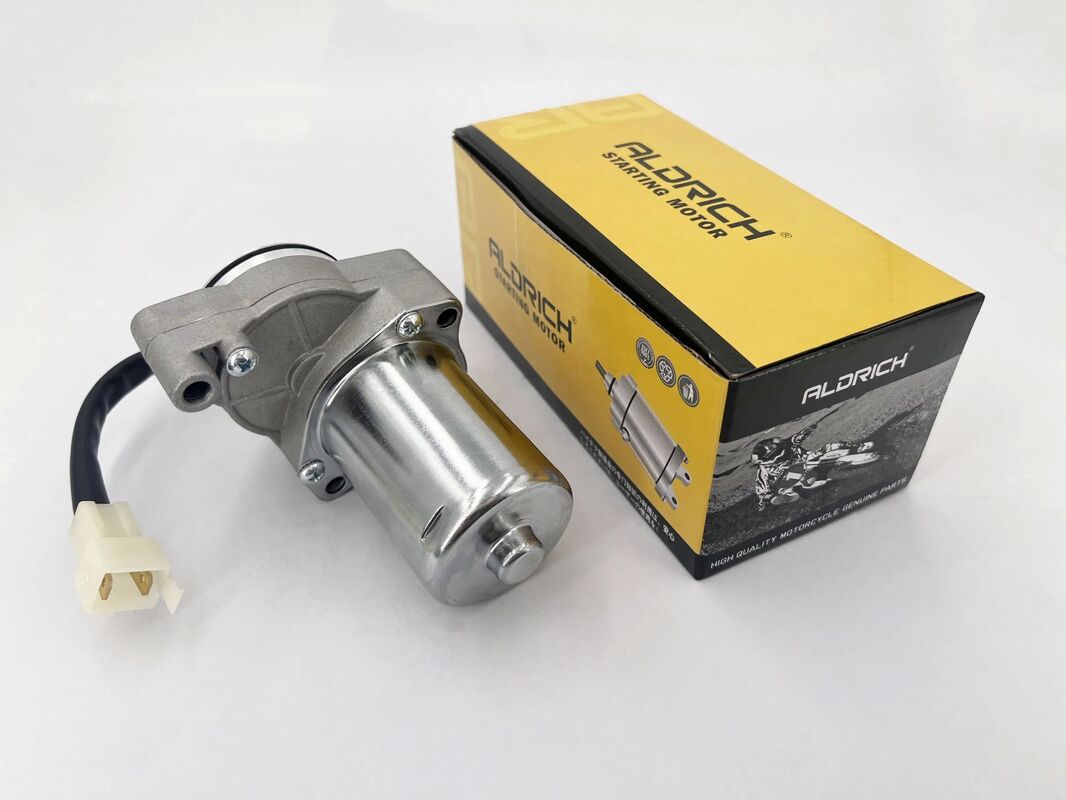

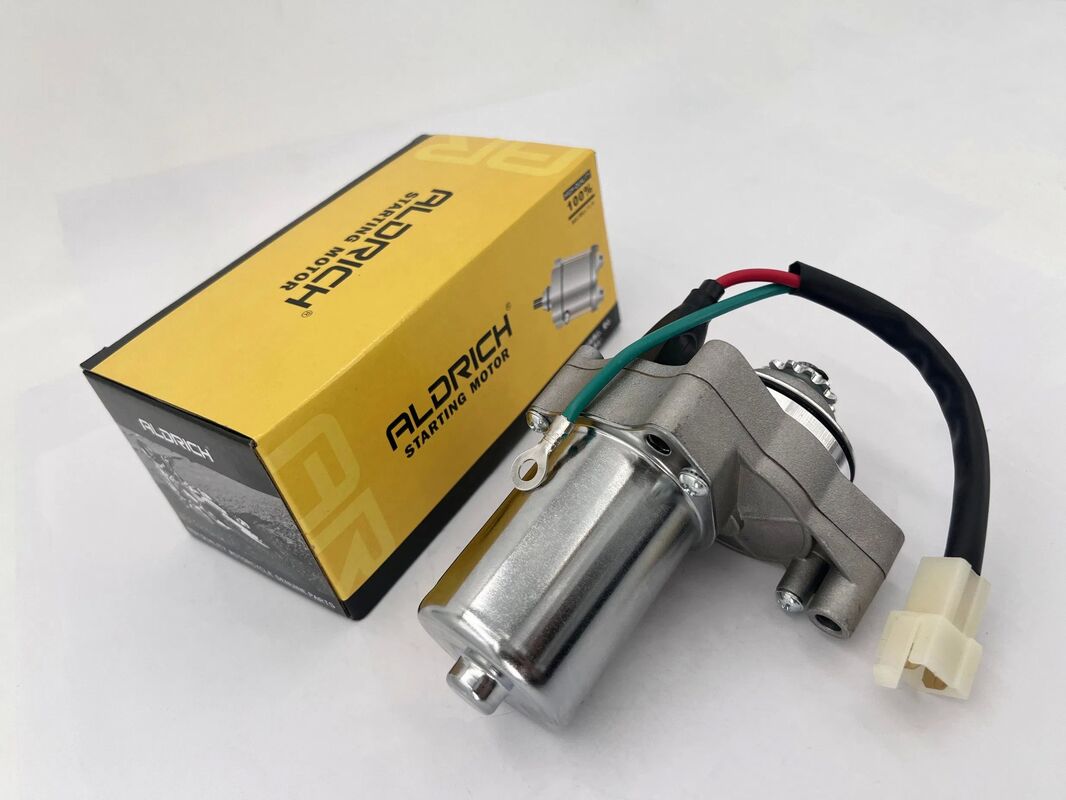

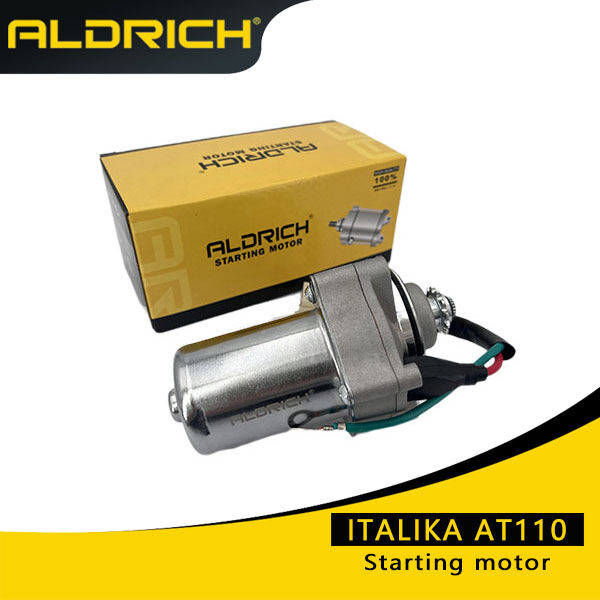

Aldrich Starting Motor for Italika AT110 / AT110RT:
High-Frequency Start Edition
This is by no means an ordinary substitute. It is custom-engineered specifically for the Italika AT110—a true "workhorse" model that must endure the rigorous test of over 50 frequent start-stop cycles daily within urban traffic environments.
Direct Technical Comparison:
| Feature | Standard Market Parts |
Aldrich Reinforced
|
| Internal Coil | Thin Aluminum or Mixed Copper |
Pure Oxygen-Free Copper
|
| Brushes | Fast-Wearing Carbon |
High-Copper Composite
|
| Seal Quality | Standard Paper Seal | Dual NBR O-Rings |
| Torque | Weak in Cold Weather | Instant High-Amperage Crank |
Field-Tested Solutions
1. The "Delivery-Proof" Commutator
AT110 starters often burn out due to heat buildup. We use oversized copper segments in the commutator to dissipate heat 30% faster, ensuring the motor stays cool during heavy delivery shifts.
2. Anti-Leak Internal Shield
The AT110 engine case can leak oil into the starter over time. Our motor features a reinforced internal seal that prevents engine oil from contaminating the brushes, which is the #1 cause of "weak starts."

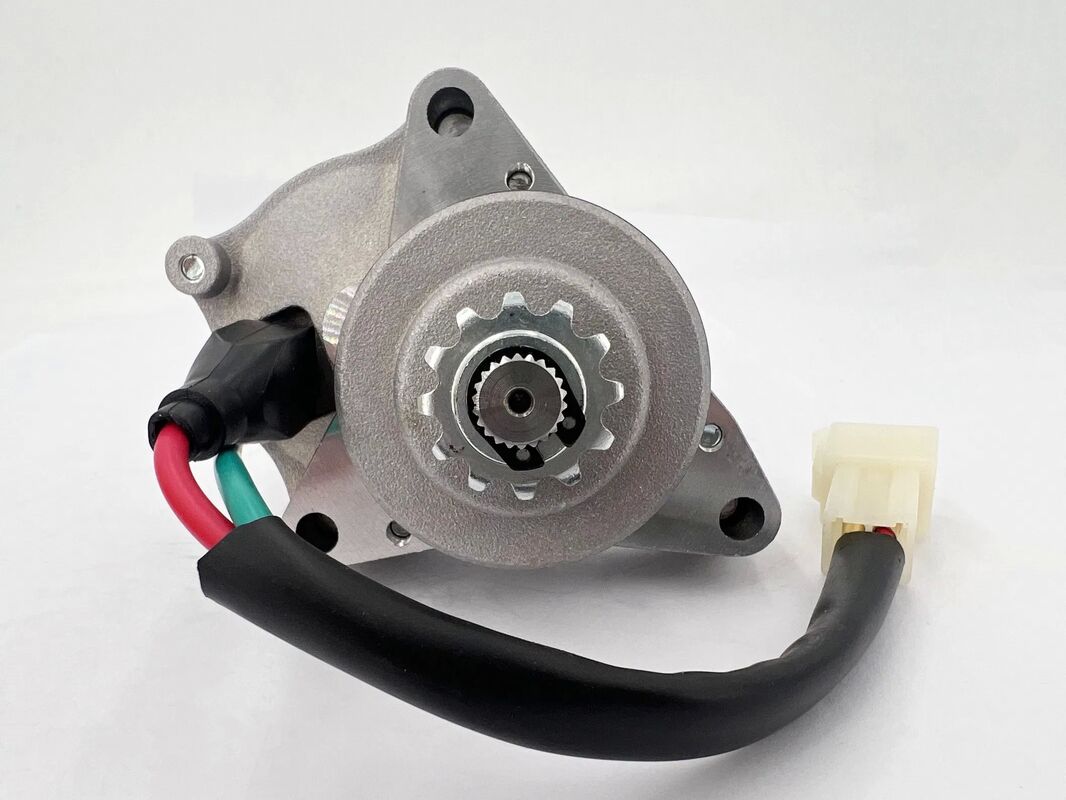

3. HRC 55 Hardened 12-Teeth Gear / HRC 55
The 12-teeth drive pinion is vacuum-quenched to HRC 55 hardness. It matches the Italika flywheel perfectly without chipping or causing the common "grinding" noise.
Physical Specs
Teeth: 12-Teeth Spline
Rotation: Clockwise (CW)
Fitment: Italika AT110, AT110RT
Mounting: 2-Bolt Bottom Mount (approx. 70mm hole spacing)
About Our Company
Aldrich Motorcycle Parts Co., Ltd. is a reliable and professional export company of motorcycle parts and accessories.
We have more than 100 categories and more than 10,000 items, including Honda, Yamaha, Suzuki, BAJAJ, TVS, HAOJUE, etc., which are made in China.
We have more than 20 years of experience in the export of motorcycle parts and accessories, and always focus on high-quality products. Our brand ALDRICH is popular worldwide for its reliable quality and reasonable prices, especially in Africa, Latin America, Central and South America and the Middle East.
We will win the market with our partners based on the first-class quality concept. We believe that our first-class quality and excellent service will help us achieve a win-win with customers on the road of common development.
Welcome customers from all over the world to visit us.
We will provide professional customization services for your business.
We are committed to serving the promotion needs and lifestyle solutions of global customers.
1. Are You A Manufacture or Trading Company?
We have been A Trading Company Of MOTORCYCLE parts for More Than 20 Years, We Have Many Good Suppliers, who not Only Give Us Good Prices But Also Guarantee Quality.
